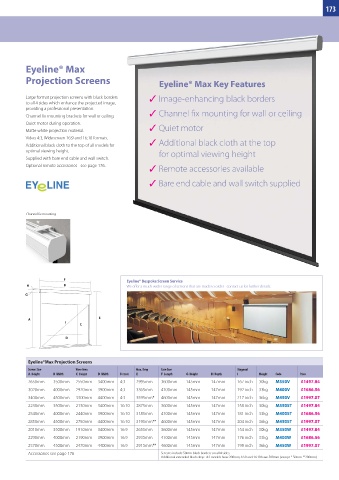

Page 174 - Planning and Display Products

173

Eyeline® Max

Projection Screens Eyeline® Max Key Features

Large format projection screens with black borders ✓ Image-enhancing black borders
to all 4 sides which enhance the projected image,
providing a professional presentation.
✓ Channel fix mounting for wall or ceiling
Channel fix mounting brackets for wall or ceiling.
Quiet motor during operation.
Matte white projection material. ✓ Quiet motor
Video 4:3, Widescreen 16:9 and 16:10 formats.
✓ Additional black cloth at the top
Additional black cloth to the top of all models for
optimal viewing height.
for optimal viewing height
Supplied with bare end cable and wall switch.
Optional remote accessories - see page 176.
✓ Remote accessories available
✓ Bare end cable and wall switch supplied

Channel fix mounting

F Eyeline® Bespoke Screen Service
H B We offer a much wider range of screens that are made to order - contact us for further details.
G

E
A
I
C
D

Eyeline®Max Projection Screens
Screen Size View Area Max. Drop Case Size Diagonal
A Height B Width C Height D Width Format E F Length G Height H Depth I Weight Code Price
2650mm 3500mm 2550mm 3400mm 4:3 2995mm 3600mm 145mm 147mm 167 inch 30kg M350V £1497.84
3020mm 4000mm 2920mm 3900mm 4:3 3365mm 4100mm 145mm 147mm 192 inch 33kg M400V £1686.56
3400mm 4500mm 3300mm 4400mm 4:3 3595mm* 4600mm 145mm 147mm 217 inch 36kg M450V £1997.07
2230mm 3500mm 2130mm 3400mm 16:10 2875mm 3600mm 145mm 147mm 158 inch 30kg M350ST £1497.84
2540mm 4000mm 2440mm 3900mm 16:10 3185mm 4100mm 145mm 147mm 181 inch 33kg M400ST £1686.56
2850mm 4500mm 2750mm 4400mm 16:10 3195mm** 4600mm 145mm 147mm 204 inch 36kg M450ST £1997.07
2010mm 3500mm 1910mm 3400mm 16:9 2655mm 3600mm 145mm 147mm 154 inch 30kg M350W £1497.84
2290mm 4000mm 2190mm 3900mm 16:9 2935mm 4100mm 145mm 147mm 176 inch 33kg M400W £1686.56
2570mm 4500mm 2470mm 4400mm 16:9 2915mm** 4600mm 145mm 147mm 199 inch 36kg M450W £1997.07
Accessories see page 176 Screens include 50mm black borders on all 4 sides.
Additional extended black drop: 4:3 models have 200mm, 16:9 and 16:10 have 500mm (except * 50mm **200mm)
