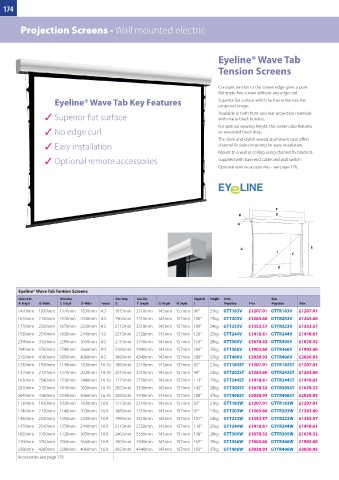

Page 175 - Planning and Display Products

174

Projection Screens - Wall mounted electric

Eyeline® Wave Tab

Tension Screens

Constant tension to the screen edge gives a pure
flat ripple free screen without any edge curl.
Eyeline® Wave Tab Key Features Superior flat surface which further enhances the
projected image.
Available in both front and rear projection materials
✓ Superior flat surface with matte black borders.
For optimal viewing height, this screen also features
✓ No edge curl an extended black drop.
The sleek and stylish waved aluminium case offers
✓ Easy installation channel fix style mounting for easy installation.
Mount to a wall or ceiling using channel fix brackets.
✓ Optional remote accessories Supplied with bare end cable and wall switch.
Optional remote accessories - see page 176.

F
H B
G

E
A
I
C
D

Eyeline® Wave Tab Tention Screens
Screen Size View Area Max. Drop Case Size Diagonal Weight Front Rear
A Height B Width C Height D Width Format E F Length G Height H Depth I Projection Price Projection Price
1470mm 1930mm 1370mm 1830mm 4:3 1813mm 2110mm 143mm 157mm 90” 21kg GTT183V £1207.01 GTTR183V £1207.01
1620mm 2130mm 1520mm 2030mm 4:3 1963mm 2310mm 143mm 157mm 100” 23kg GTT203V £1263.60 GTTR203V £1263.60
1770mm 2330mm 1670mm 2230mm 4:3 2113mm 2510mm 143mm 157mm 109” 24kg GTT223V £1353.57 GTTR223V £1353.57
1930mm 2540mm 1830mm 2440mm 4:3 2273mm 2720mm 143mm 157mm 120” 25kg GTT244V £1418.61 GTTR244V £1418.61
2390mm 3150mm 2290mm 3050mm 4:3 2733mm 3330mm 143mm 157mm 150” 28kg GTT305V £1678.32 GTTR305V £1678.32
2840mm 3760mm 2740mm 3660mm 4:3 3183mm 3940mm 143mm 157mm 180” 35kg GTT366V £1903.60 GTTR366V £1903.60
3150mm 4160mm 3050mm 4060mm 4:3 3493mm 4340mm 143mm 157mm 200” 37kg GTT406V £2020.93 GTTR406V £2020.93
1240mm 1930mm 1140mm 1830mm 16:10 1883mm 2110mm 143mm 157mm 85” 21kg GTT183ST £1207.01 GTTR183ST £1207.01
1370mm 2130mm 1270mm 2030mm 16:10 2013mm 2310mm 143mm 157mm 94” 23kg GTT203ST £1263.60 GTTR203ST £1263.60
1630mm 2540mm 1530mm 2440mm 16:10 2273mm 2720mm 143mm 157mm 113” 25kg GTT244ST £1418.61 GTTR244ST £1418.61
2010mm 3150mm 1910mm 3050mm 16:10 2653mm 3330mm 143mm 157mm 142” 28kg GTT305ST £1678.32 GTTR305ST £1678.32
2640mm 4160mm 2540mm 4060mm 16:10 3283mm 4340mm 143mm 157mm 188” 37kg GTT406ST £2020.93 GTTR406ST £2020.93
1130mm 1930mm 1030mm 1830mm 16:9 1773mm 2110mm 143mm 157mm 83” 21kg GTT183W £1207.01 GTTR183W £1207.01
1240mm 2130mm 1140mm 2030mm 16:9 1883mm 2310mm 143mm 157mm 92” 23kg GTT203W £1263.60 GTTR203W £1263.60
1350mm 2330mm 1250mm 2230mm 16:9 1993mm 2510mm 143mm 157mm 101” 24kg GTT223W £1353.57 GTTR223W £1353.57
1470mm 2540mm 1370mm 2440mm 16:9 2113mm 2720mm 143mm 157mm 110” 25kg GTT244W £1418.61 GTTR244W £1418.61
1820mm 3150mm 1720mm 3050mm 16:9 2463mm 3330mm 143mm 157mm 138” 28kg GTT305W £1678.32 GTTR305W £1678.32
2160mm 3760mm 2060mm 3660mm 16:9 2803mm 3940mm 143mm 157mm 165” 35kg GTT366W £1903.60 GTTR366W £1903.60
2380mm 4260mm 2280mm 4060mm 16:9 3023mm 4340mm 143mm 157mm 183” 37kg GTT406W £2020.93 GTTR406W £2020.93
Accessories see page 176
