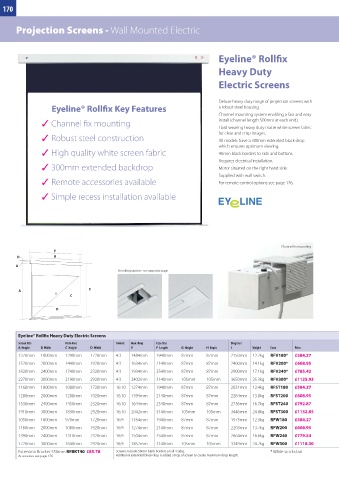

Page 171 - Planning and Display Products

170

Projection Screens - Wall Mounted Electric

Eyeline® Rollfix

Heavy Duty

Electric Screens

Deluxe heavy duty range of projection screens with
Eyeline® Rollfix Key Features a robust steel housing.
Channel mounting system enabling a fast and easy
✓ Channel fix mounting install (channel length 500mm at each end).
Hard wearing heavy duty matte white screen fabric
for clear and crisp images.
✓ Robust steel construction All models have a 300mm extended black drop
which ensures optimum viewing.
✓ High quality white screen fabric 40mm black borders to side and bottom.
Requires electrical installation.
✓ 300mm extended backdrop Motor situated on the right hand side.
Supplied with wall switch.
✓ Remote accessories available For remote control options see page 176.

✓ Simple recess installation available

Channel fix mounting
F
H B
G
In-ceiling option - see opposite page

E
A
I
C
D

Eyeline® Rollfix Heavy Duty Electric Screens
Screen Size View Area Format Max. Drop Case Size Diagonal
A Height B Width C Height D Width E F Length G Height H Depth I Weight Code Price
1370mm 1800mm 1290mm 1720mm 4:3 1484mm 1940mm 87mm 87mm 2150mm 12.7kg RFV180* £584.27
1520mm 2000mm 1440mm 1920mm 4:3 1634mm 2140mm 87mm 87mm 2400mm 14.1kg RFV200* £608.95
1820mm 2400mm 1740mm 2320mm 4:3 1934mm 2540mm 87mm 87mm 2900mm 17.1kg RFV240* £785.42
2270mm 3000mm 2190mm 2920mm 4:3 2402mm 3140mm 105mm 105mm 3650mm 25.3kg RFV300* £1125.93
1160mm 1800mm 1080mm 1720mm 16:10 1274mm 1940mm 87mm 87mm 2031mm 12.4kg RFST180 £584.27
1280mm 2000mm 1200mm 1920mm 16:10 1394mm 2140mm 87mm 87mm 2264mm 13.8kg RFST200 £608.95
1530mm 2400mm 1450mm 2320mm 16:10 1644mm 2540mm 87mm 87mm 2736mm 16.7kg RFST240 £792.87
1910mm 3000mm 1830mm 2920mm 16:10 2042mm 3140mm 105mm 105mm 3446mm 24.8kg RFST300 £1132.85
1050mm 1800mm 970mm 1720mm 16:9 1164mm 1940mm 87mm 87mm 1975mm 12.3kg RFW180 £584.27
1160mm 2000mm 1080mm 1920mm 16:9 1274mm 2140mm 87mm 87mm 2203mm 13.7kg RFW200 £608.95
1390mm 2400mm 1310mm 2320mm 16:9 1504mm 2540mm 87mm 87mm 2664mm 16.6kg RFW240 £779.54
1720mm 3000mm 1640mm 2920mm 16:9 1852mm 3140mm 105mm 105mm 3349mm 24.7kg RFW300 £1118.30
Extension Bracket 550mm RFBKT40 £85.78 Screens include 50mm black borders on all 4 sides. * While stocks last
Accessories see page 176 Additional extended black drop is added at top of screen to create maximum drop length.
