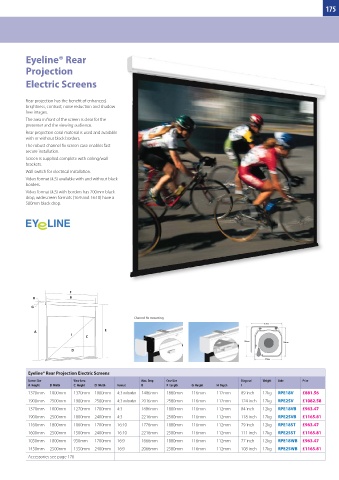

Page 176 - Planning and Display Products
P. 176

175









          Eyeline® Rear

          Projection

          Electric Screens


          Rear projection has the benefit of enhanced,
          brightness, contrast, noise reduction and shadow
          free images.
          The area in front of the screen is clear for the
          presenter and the viewing audience.
          Rear projection coral material is used and available
          with or without black borders.
          The robust channel fix screen case enables fast
          secure installation.
          Screen is supplied complete with ceiling/wall
          brackets.
          Wall switch for electrical installation.
          Video format (4:3) available with and without black
          borders.
          Video format (4:3) with borders has 200mm black
          drop, widescreen formats (16:9 and 16:10) have a
          500mm black drop.


















                          F
             H            B
            G
                                                Channel fix mounting
                                                                                              112mm
                                      E
             A
                          I
                               C
                                                                                       116mm
                                                                                                    108mm
                          D
                                                                                              97mm
           Eyeline® Rear Projection Electric Screens
           Screen Size     View Area               Max. Drop  Case Size               Diagonal   Weight   Code  Price
           A  Height  B  Width  C  Height  D  Width  Format  E  F  Length  G  Height  H  Depth  I
           1370mm  1800mm  1370mm  1800mm  4:3 no border  1486mm  1880mm  116mm  112mm  89 inch  12kg  RPE18V  £881.56
           1900mm  2500mm  1900mm  2500mm  4:3 no border  2016mm  2580mm  116mm  112mm  124 inch  17kg  RPE25V  £1082.58
           1370mm  1800mm  1270mm  1700mm  4:3     1686mm  1880mm   116mm    112mm    84 inch  12kg  RPE18VB  £963.47
           1900mm  2500mm  1800mm  2400mm  4:3     2216mm  2580mm   116mm    112mm    118 inch  17kg  RPE25VB  £1165.81
           1160mm  1800mm  1060mm  1700mm  16:10   1776mm  1880mm   116mm    112mm    79 inch  12kg  RPE18ST  £963.47
           1600mm  2500mm  1500mm  2400mm  16:10   2216mm  2580mm   116mm    112mm    111 inch  17kg  RPE25ST  £1165.81
           1050mm  1800mm  950mm  1700mm  16:9     1666mm  1880mm   116mm    112mm    77 inch  12kg  RPE18WB  £963.47
           1450mm  2500mm  1350mm  2400mm  16:9    2066mm  2580mm   116mm    112mm    108 inch  17kg  RPE25WB  £1165.81
           Accessories see page 176
