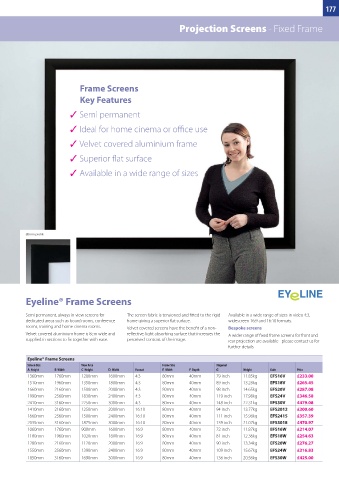

                                                                Projection Screens - Fixed Frame












                            Frame Screens
                            Key Features

                          ✓ Semi permanent


                          ✓ Ideal for home cinema or office use

                          ✓ Velvet covered aluminium frame

                          ✓ Superior flat surface

                          ✓ Available in a wide range of sizes












          80mm profile












          Eyeline® Frame Screens


          Semi permanent, always in view screens for   The screen fabric is tensioned and fitted to the rigid   Available in a wide range of sizes in video 4:3,
          dedicated areas such as board rooms, conference   frame giving a superior flat surface.  widescreen 16:9 and 16:10 formats.
          rooms, training and home cinema rooms.  Velvet covered screens have the benefit of a non-  Bespoke screens
          Velvet covered aluminium frame is 8cm wide and   reflective, light absorbing surface that increases the    A wider range of fixed frame screens for front and
          supplied in sections to fix together with ease.  perceived contrast of the image.  rear projection are available - please contact us for
                                                                                 further details.
           Eyeline® Frame Screens
           Screen Size        View Area                   Frame Size         Diagonal
           A  Height  B  Width  C  Height  D  Width  Format  E  Width  F  Depth  G    Weight    Code     Price
           1360mm   1760mm    1200mm   1600mm    4:3      80mm     40mm      79 inch  11.85kg   EFS16V   £233.00
           1510mm   1960mm    1350mm   1800mm    4:3      80mm     40mm      89 inch  13.28kg   EFS18V   £265.45
           1660mm   2160mm    1500mm   2000mm    4:3      80mm     40mm      98 inch  14.65kg   EFS20V   £287.08
           1990mm   2560mm    1830mm   2400mm    4:3      80mm     40mm      119 inch  17.98kg  EFS24V   £346.58
           2410mm   3160mm    2250mm   3000mm    4:3      80mm     40mm      148 inch  22.31kg  EFS30V   £479.08
           1410mm   2160mm    1250mm   2000mm    16:10    80mm     40mm      94 inch  13.77kg   EFS2012  £300.60
           1660mm   2560mm    1500mm   2400mm    16:10    80mm     40mm      111 inch  15.98kg  EFS2415  £357.39
           2035mm   3160mm    1875mm   3000mm    16:10    80mm     40mm      139 inch  21.07kg  EFS3018  £470.97
           1060mm   1760mm    900mm    1600mm    16:9     80mm     40mm      72 inch  11.87kg   EFS16W   £214.07
           1180mm   1960mm    1020mm   1800mm    16:9     80mm     40mm      81 inch  12.36kg   EFS18W   £254.63
           1280mm   2160mm    1120mm   2000mm    16:9     80mm     40mm      90 inch  13.34kg   EFS20W   £276.27
           1550mm   2560mm    1390mm   2400mm    16:9     80mm     40mm      109 inch  15.67kg  EFS24W   £316.83
           1850mm   3160mm    1690mm   3000mm    16:9     80mm     40mm      136 inch  20.56kg  EFS30W   £425.00
