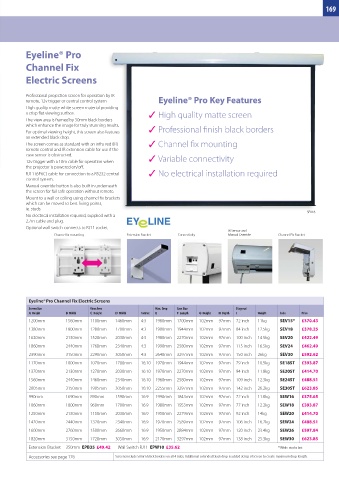

Page 170 - Planning and Display Products

169

Eyeline® Pro

Channel Fix

Electric Screens

Professional projection screen for operation by IR
remote, 12v trigger or central control system Eyeline® Pro Key Features
High quality matte white screen material providing
a crisp flat viewing surface. ✓ High quality matte screen
The view area is framed by 50mm black borders
which enhance the image for truly stunning results.
For optimal viewing height, this screen also features ✓ Professional finish black borders
an extended black drop.
The screen comes as standard with an infra-red (IR) ✓ Channel fix mounting
remote control and IR extension cable for use if the
case sensor is obstructed.
12v trigger with a 10m cable for operation when ✓ Variable connectivity
the projector is powered on/off.
RJ11 (6P6C) cable for connection to a RS232 central ✓ No electrical installation required
control system.
Manual override button is also built in underneath
the screen for fail safe operation without remote.
Mount to a wall or ceiling using channel fix brackets
which can be moved to best fixing points,
ie. studs.
SEV18
No electrical installation required, supplied with a
2.7m cable and plug.
Optional wall switch connects to RJ11 socket.
IR Sensor and
Channel fix mounting Extension Bracket Connectivity Manual Override Channel Fix Bracket

Eyeline® Pro Channel Fix Electric Screens
Screen Size View Area Max. Drop Case Size Diagonal
A Height B Width C Height D Width Format E F Length G Height H Depth I Weight Code Price
1200mm 1560mm 1100mm 1460mm 4:3 1980mm 1700mm 102mm 97mm 72 inch 11kg SEV15* £370.43
1380mm 1800mm 1280mm 1700mm 4:3 1980mm 1944mm 102mm 97mm 84 inch 12.5kg SEV18 £378.25
1620mm 2130mm 1520mm 2030mm 4:3 1980mm 2270mm 102mm 97mm 100 inch 14.5kg SEV20 £422.49
1860mm 2440mm 1760mm 2340mm 4:3 1990mm 2580mm 102mm 97mm 115 inch 16.5kg SEV24 £462.49
2390mm 3150mm 2290mm 3050mm 4:3 2640mm 3297mm 102mm 97mm 150 inch 26kg SEV30 £592.62
1170mm 1800mm 1070mm 1700mm 16:10 1970mm 1944mm 102mm 97mm 79 inch 10.5kg SE18ST £393.87
1370mm 2130mm 1270mm 2030mm 16:10 1970mm 2270mm 102mm 97mm 94 inch 11.8kg SE20ST £414.70
1560mm 2440mm 1460mm 2340mm 16:10 1960mm 2580mm 102mm 97mm 109 inch 12.3kg SE24ST £488.51
2005mm 3150mm 1905mm 3050mm 16:10 2255mm 3297mm 102mm 97mm 142 inch 26.2kg SE30ST £623.85
990mm 1690mm 890mm 1590mm 16:9 1990mm 1843mm 102mm 97mm 72 inch 11.8kg SEW16 £375.65
1060mm 1800mm 960mm 1700mm 16:9 1980mm 1953mm 102mm 97mm 77 inch 12.2kg SEW18 £393.87
1250mm 2130mm 1150mm 2030mm 16:9 1950mm 2279mm 102mm 97mm 92 inch 14kg SEW20 £414.70
1420mm 2440mm 1320mm 2340mm 16:9 1970mm 2589mm 102mm 97mm 106 inch 16.2kg SEW24 £488.51
1600mm 2760mm 1500mm 2660mm 16:9 1950mm 2884mm 102mm 97mm 120 inch 23.4kg SEW26 £597.84
1820mm 3150mm 1720mm 3050mm 16:9 2170mm 3297mm 102mm 97mm 138 inch 25.3kg SEW30 £623.85
Extension Bracket 350mm EPB35 £49.42 Wall Switch RJ11 EPW10 £35.62 * While stocks last
Accessories see page 176 Screens include 50mm black borders on all 4 sides. Additional extended black drop is added at top of screen to create maximum drop length.
