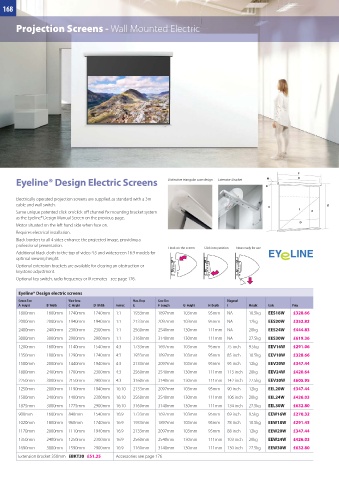

Page 169 - Planning and Display Products

168

Projection Screens - Wall Mounted Electric

F
Eyeline® Design Electric Screens Distinctive triangular case design Extension Bracket G H B

Electrically operated projection screens are supplied as standard with a 3m
cable and wall switch. E
A
I
Same unique patented click-on/click-off channel fix mounting bracket system C
as the Eyeline® Design Manual Screen on the previous page.
D
Motor situated on the left hand side when face on.
Requires electrical installation.
Black borders to all 4 sides enhance the projected image, providing a
professional presentation.
Hook on the screen Click into position Now ready for use
Additional black cloth to the top of video 4:3 and widescreen 16:9 models for
optimal viewing height.
Optional extension brackets are available for clearing an obstruction or
keystone adjustment.
Optional key switch, radio frequency or IR remotes - see page 176.

Eyeline® Design electric screens
Screen Size View Area Max. Drop Case Size Diagonal
A Height B Width C Height D Width Format E F Length G Height H Depth I Weight Code Price
1800mm 1800mm 1740mm 1740mm 1:1 1933mm 1897mm 103mm 95mm NA 10.5kg EES18W £328.66
2000mm 2000mm 1940mm 1940mm 1:1 2133mm 2097mm 103mm 95mm NA 12kg EES20W £352.82
2400mm 2400mm 2300mm 2300mm 1:1 2560mm 2540mm 130mm 111mm NA 20kg EES24W £444.83
3000mm 3000mm 2900mm 2900mm 1:1 3160mm 3140mm 130mm 111mm NA 27.5kg EES30W £619.36
1200mm 1600mm 1140mm 1540mm 4:3 1733mm 1697mm 103mm 95mm 75 inch 9.5kg EEV16W £291.06
1350mm 1800mm 1290mm 1740mm 4:3 1933mm 1897mm 103mm 95mm 85 inch 10.5kg EEV18W £328.66
1500mm 2000mm 1440mm 1940mm 4:3 2133mm 2097mm 103mm 95mm 95 inch 12kg EEV20W £347.44
1800mm 2400mm 1700mm 2300mm 4:3 2560mm 2540mm 130mm 111mm 113 inch 20kg EEV24W £420.64
2250mm 3000mm 2150mm 2900mm 4:3 3160mm 3140mm 130mm 111mm 142 inch 27.5kg EEV30W £605.95
1250mm 2000mm 1190mm 1940mm 16:10 2133mm 2097mm 103mm 95mm 90 inch 12kg EEL20W £347.44
1500mm 2400mm 1400mm 2300mm 16:10 2560mm 2540mm 130mm 111mm 106 inch 20kg EEL24W £426.03
1875mm 3000mm 1775mm 2900mm 16:10 3160mm 3140mm 130mm 111mm 134 inch 27.5kg EEL30W £632.80
900mm 1600mm 840mm 1540mm 16:9 1733mm 1697mm 103mm 95mm 69 inch 9.5kg EEW16W £270.32
1020mm 1800mm 960mm 1740mm 16:9 1933mm 1897mm 103mm 95mm 78 inch 10.5kg EEW18W £291.45
1170mm 2000mm 1110mm 1940mm 16:9 2133mm 2097mm 103mm 95mm 88 inch 12kg EEW20W £347.44
1350mm 2400mm 1250mm 2300mm 16:9 2560mm 2540mm 130mm 111mm 103 inch 20kg EEW24W £426.03
1690mm 3000mm 1590mm 2900mm 16:9 3160mm 3140mm 130mm 111mm 130 inch 27.5kg EEW30W £632.80
Extension Bracket 350mm EBKT30 £51.25 Accessories see page 176
