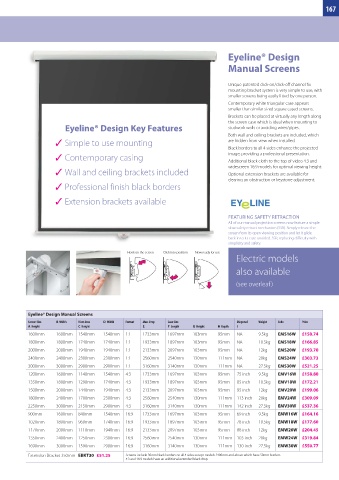

Page 168 - Planning and Display Products

167

Eyeline® Design
Manual Screens

Unique patented click-on/click-off channel fix
mounting bracket system is very simple to use, with
smaller screens being easily fitted by one person.
Contemporary white triangular case appears
smaller than similar sized square cased screens.
Brackets can be placed at virtually any length along
the screen case which is ideal when mounting to
Eyeline® Design Key Features studwork walls or avoiding wires/pipes.
Both wall and ceiling brackets are included, which
✓ Simple to use mounting are hidden from view when installed.
Black borders to all 4 sides enhance the projected
image, providing a professional presentation.
✓ Contemporary casing Additional black cloth to the top of video 4:3 and
widescreen 16:9 models for optimal viewing height.
✓ Wall and ceiling brackets included Optional extension brackets are available for
clearing an obstruction or keystone adjustment.
✓ Professional finish black borders

✓ Extension brackets available

FEATURING SAFETY RETRACTION
All of our manual projection screens now feature a simple
slow safety retract mechanism (SSR). Simply release the
screen from its open viewing position and let it glide
back in to its case unaided. SSR, replacing difficulty with
simplicity and safety.
Hook on the screen Click into position Now ready for use
Electric models

also available

(see overleaf)

Eyeline® Design Manual Screens
Screen Size B Width View Area D Width Format Max. Drop Case Size Diagonal Weight Code Price
A Height C Height E F Length G Height H Depth I
1600mm 1600mm 1540mm 1540mm 1:1 1733mm 1697mm 103mm 95mm NA 9.5kg EMS16W £150.74
1800mm 1800mm 1740mm 1740mm 1:1 1933mm 1897mm 103mm 95mm NA 10.5kg EMS18W £166.85
2000mm 2000mm 1940mm 1940mm 1:1 2133mm 2097mm 103mm 95mm NA 12kg EMS20W £193.70
2400mm 2400mm 2300mm 2300mm 1:1 2560mm 2540mm 130mm 111mm NA 20kg EMS24W £303.73
3000mm 3000mm 2900mm 2900mm 1:1 3160mm 3140mm 130mm 111mm NA 27.5kg EMS30W £521.25
1200mm 1600mm 1140mm 1540mm 4:3 1733mm 1697mm 103mm 95mm 75 inch 9.5kg EMV16W £158.80
1350mm 1800mm 1290mm 1740mm 4:3 1933mm 1897mm 103mm 95mm 85 inch 10.5kg EMV18W £172.21
1500mm 2000mm 1440mm 1940mm 4:3 2133mm 2097mm 103mm 95mm 95 inch 12kg EMV20W £199.06
1800mm 2400mm 1700mm 2300mm 4:3 2560mm 2540mm 130mm 111mm 113 inch 20kg EMV24W £309.09
2250mm 3000mm 2150mm 2900mm 4:3 3160mm 3140mm 130mm 111mm 142 inch 27.5kg EMV30W £537.36
900mm 1600mm 840mm 1540mm 16:9 1733mm 1697mm 103mm 95mm 69 inch 9.5kg EMW16W £164.16
1020mm 1800mm 960mm 1740mm 16:9 1933mm 1897mm 103mm 95mm 78 inch 10.5kg EMW18W £177.60
1170mm 2000mm 1110mm 1940mm 16:9 2133mm 2097mm 103mm 95mm 88 inch 12kg EMW20W £204.45
1350mm 2400mm 1250mm 2300mm 16:9 2560mm 2540mm 130mm 111mm 103 inch 20kg EMW24W £319.84
1690mm 3000mm 1590mm 2900mm 16:9 3160mm 3140mm 130mm 111mm 130 inch 27.5kg EMW30W £550.77

Extension Bracket 350mm EBKT30 £51.25 Screens include 30mm black borders on all 4 sides except models 2400mm and above which have 50mm borders.
4:3 and 16:9 models have an additional extended black drop.
